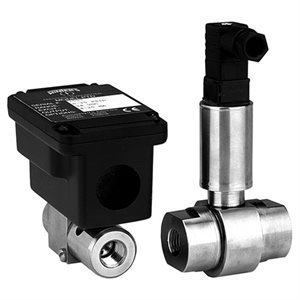

LTD Differential Transmitter

APPLICATIONS:

To measure pressure drops across filters
Pumps and compressors, flow measurements of gases and liquids, liquid level measurement of pressurized vessels

DESCRIPTION & FEATURES:

Designed to measure the differential pressures of liquids and gases between two ports
Compact, efficient design available in Low or High psi ranges that facilitates installation in tight spaces
Low Range housing is constructed of stainless steel and aluminum
High Range housing is made from a 316-grade stainless steel ideally suited for an industrial environment
Fast response sensor and signal conditioned electronic circuitry provide quick and accurate readings
Unique isolation system responds to pressure changes approximately 20 times faster than conventional transmitters with ranges below 100 psi (Low Range model)
CE approval is standard on all models
NEMA 4 approval is standard on the Low Range model
RoHS compliant
5 year warranty

DOCUMENTATION:

	Low Range	High Range
Electrical Output	4-20 mA, 2 wire 0-5 Vdc or 0-10 Vdc	4-20 mA, 2 wire (other options available)
Electrical Connection	Barrier strip terminal block with conduit enclosure and 0.875 dia. conduit opening	DIN 43650 with mate
Excitation Voltage	9-30 Vdc	8-38 Vdc
Wetted Parts/Connection	17-4PH SS with FKM O-ring, 1/4”-18 NPTF	316L SS, 1/4” NPTF 300 series SS, 17-4PH SS with FKM O-ring
Housing	304 SS, cast aluminum	316L SS
Proof Pressure	Refer to pressure range chart on data sheet	Refer to pressure range chart on data sheet (20X full scale optional)
Burst Pressure	Refer to pressure range chart on data sheet
Normal Operating Temperature Range	0°F to 175°F (-17°C to 79°C)	-40°F to 200°F (-40°C to 93°C)
Compensated Temperature Range	30°F to 150°F (0°C to 65°C)	0°F to 170°F (-18°C to 76°C)
Ambient Temperature Effect on Zero/Span	±2% of full scale/100°F (37.7°C)	≤±1.5% FSO over compensated range
Response Time	30-50 ms	<50 ms
Long Term Stability	±0.5% FSO/yr	≤±0.25% FSO/yr
Weight	14.4 oz. (408 g)	13 oz. (368 g)
Accuracy	±0.25% FSO	±0.25% FSO
Enclosure Rating	IP65	IP65
