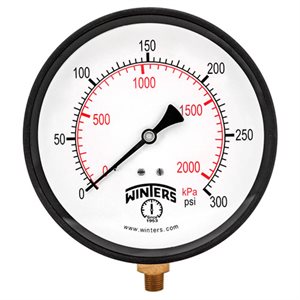

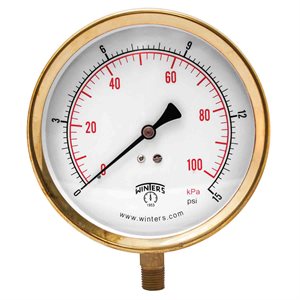

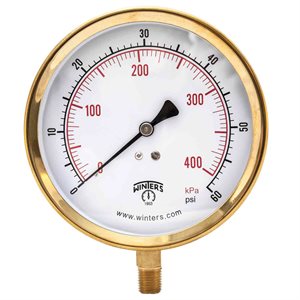

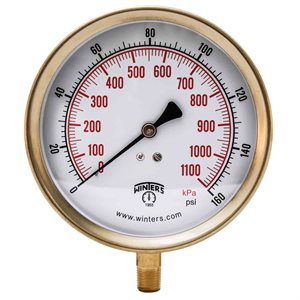

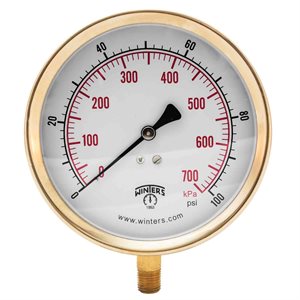

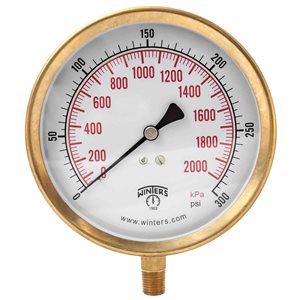

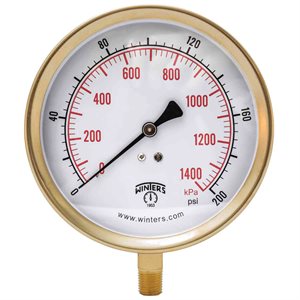

P1S 100 Series Gauge
DownloadAPPLICATIONS:
- Plumbing and heating
DESCRIPTION & FEATURES:
- High quality, commercial grade gauge at an economical price
- ±1% accuracy
- Steel and aluminum cases
- Brass wetted parts
- ASME B40.100 compliant (EN837-1 available)
- CRN registered
- 5 year warranty
DOCUMENTATION:
| Case | 3.5” (90mm), 4” (100mm): Steel painted black 4.5” (115mm): Aluminum 6” (150mm) Bottom: Steel painted black 6” (150mm) Back: Aluminum |
| Lens | 3.5” (90mm), 4.5” (115mm) bottom connection, 6” (150mm): Glass 4″ (100mm), 4.5” (115mm) back connection: Polycarbonate |
| Ring | 3.5” (90mm), 4” (100mm), 4.5” (115mm) bottom connection: Polished brass 6” (150mm) bottom connection: Steel painted black 4.5″ (115mm) back connection, 6″ (150mm) back connection: SS, polished |
| Socket | Brass |
| Connection | 1/4” NPT standard |
| Bourdon Tube | Phosphor bronze |
| Pointer | Black aluminum |
| Welding | Silver alloy |
| Over-pressure Limit | 25% of full scale value |
| Working Pressure | Maximum 75% of full scale value |
| Ambient/Process Temperature | -40°F to 200°F (-40°C to 93°C) |
| Accuracy | ±1% ANSI/ASME Grade 1A |
| Enclosure Rating | IP52 |
