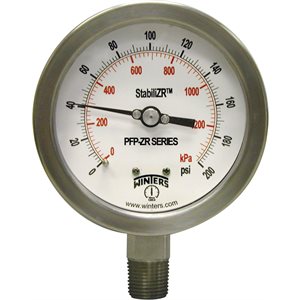

PFP-ZR Premium Stainless Steel StabiliZR Gauge




APPLICATIONS:

  • Ideally suited for process, chemical and petroleum industry
  • Where chemical compatibility and contamination is a concern

DESCRIPTION & FEATURES:

  • StabiliZR™ dampened movement minimizes effects of pulsation and vibration without liquid filling
  • Restricted orifice standard on dual scale (optional on single scale)
  • Stainless steel case
  • Under and overload stops
  • Back, bottom or panel mounted
  • 316L SS wetted parts
  • ASME B40.100 compliant (EN837-1 available)
  • RoHS compliant
  • CRN registered
  • 5 year warranty

DOCUMENTATION:

Dial 2.5” (63mm), 4” (100mm) white aluminum with black and red markings
Case AISI 304 SS (dry)
Lens Polycarbonate
Ring AISI 304 SS bayonet
Socket 316L SS
Connection

2.5” (63mm) dial: 1/4” NPT

4” (100mm) dial: 1/4”, 1/2” NPT
Bourdon Tube 316L SS
Movement 304 SS (under and overload stops 4" & 6") and StabiliZR™ dampened movement (silicone in sealed chamber)
Pointer

2.5″ (63mm): Aluminum, anodized black

4″ (100mm): Aluminum, anodized black, micrometer adjustable
Welding Laser welded socket to case
Over-pressure Limit

25% for pressures up to 1,450 psi (9,998 kPa)

15% for pressures over 1,500 psi (10,342 kPa)
Lens Ring Gasket Buna N
Ambient Temperature -40°F to 250°F (-40°C to 120°C)
Process Temperature -40°F to 250°F (-40°C to 120°C)
Working Pressure Maximum 75% of full scale value
Accuracy

2.5″ (63mm): ±1.5% of full scale

4″ (100mm): ±1% ANSI/ASME Grade 1A
Enclosure Rating NEMA 4X/IP66, EN60529-1 (IEC529-1)

  • Display Type
  • Results Per Page
  • Sort By
4.0''DIAL, SS STABILIZER PREMIUM, 0-160 PSI / KPA, 1 / 4''BTM
  • CAD $266.24 /EACH
  • EACH
  • Qty avail.: 0
LF / SS 4'' 0-3000 PSI / KPA 1 / 2'' NPT BACK STAB
  • CAD $322.17 /EACH
  • EACH
  • Qty avail.: 0
LF / SS 4'' 30'' / 0 / 30 PSI / KPA 1 / 4'' NPT BTM, STABILIZR
  • CAD $292.89 /EACH
  • EACH
  • Qty avail.: 0
SS 4'' 0-30 PSI 1 / 4'' NPT BOTTOM
  • CAD $266.24 /EACH
  • EACH
  • Qty avail.: 0
STAB 4'' 30'' / 0 / 15 PSI / KPA 1 / 2'' NPT BTM
  • CAD $292.89 /EACH
  • EACH
  • Qty avail.: 0
STAB LF / SS 2.5'' 0-1500 PSI / KPA 1 / 4'' BOTTOM
  • CAD $161.08 /EACH
  • EACH
  • Qty avail.: 0
STAB LF / SS 2.5'' 0-400 PSI / KPA 1 / 4'' NPT BACK
  • CAD $161.08 /EACH
  • EACH
  • Qty avail.: 0
STAB LF / SS 4'' 0-3,000 PSI / KPA 1 / 4'' NPT BACK
  • CAD $322.17 /EACH
  • EACH
  • Qty avail.: 0
STAB LF / SS 4'' 0-400 PSI / KPA 1 / 2'' NPT BOTTOM
  • CAD $266.24 /EACH
  • EACH
  • Qty avail.: 0
STAB LF / SS 4'' 0-60 PSI / KPA 1 / 2'' NPT BOTTOM
  • CAD $266.24 /EACH
  • EACH
  • Qty avail.: 3
STAB SS 2.5'' 0-400 PSI / KPA 1 / 4'' NPT BOTTOM
  • CAD $146.43 /EACH
  • EACH
  • Qty avail.: 8
STAB SS 4'' 0-1000 PSI / KPA 1 / 2'' NPT BOTTOM
  • CAD $292.89 /EACH
  • EACH
  • Qty avail.: 0
STAB SS 4'' 0-15 PSI / KPA 1 / 4'' NPT BACK
  • CAD $292.89 /EACH
  • EACH
  • Qty avail.: 0
STAB SS 4'' 0-600 PSI / KPA 1 / 4'' NPT BOTTOM
  • CAD $266.24 /EACH
  • EACH
  • Qty avail.: 0
STAB / SS 2.5" 0-60 PSI / KPA 1 / 4" NPT BOTTOM
  • CAD $146.43 /EACH
  • EACH
  • Qty avail.: 10+
STABILIZER 2.5"x1 / 4" NPT BTM 0 / 100 PSI / KPA
  • CAD $146.43 /EACH
  • EACH
  • Qty avail.: 0
STABILIZER 2.5"x1 / 4" NPT BTM 0 / 200 PSI / KPA SS
  • CAD $146.43 /EACH
  • EACH
  • Qty avail.: 0
